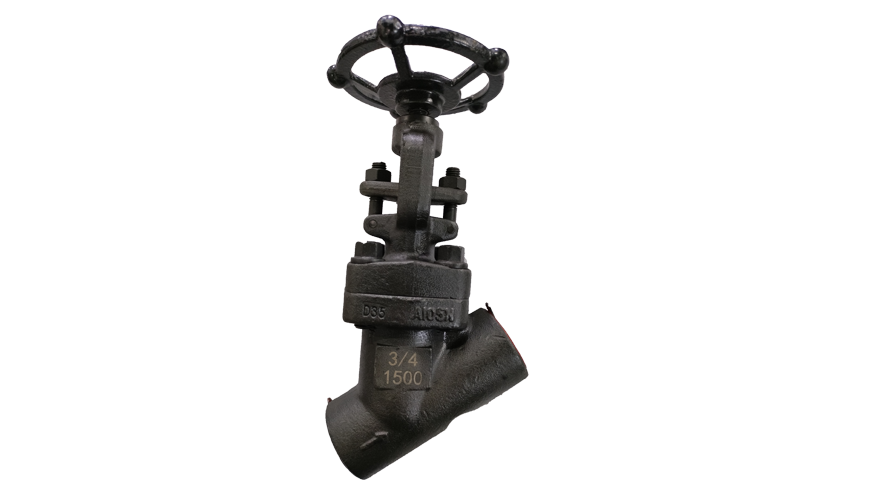

Y-GLOBE
Pressure: 150 -1500LB, PN16- 250
Size: 1/2″-2″
End: SW, NPT, Flange, etc.
Material: A105/LF2/F11/F22/F304/F304L/F316/F316L/F51/F53, etc.
Description
1. Construction: B.B&W.B
2. Gasket: Stainless Steel+Graphite, etc.
3. Integral Seat
4. Material for trim is depend on client requirement&operating condition
5. Design&Manufacture: API602; DIN; BS5352; etc.
6. Socket Welding Dimension: ANSI B16.11
7. Screw End Dimension: ANSI N1.20.1
8. Flange dimension: ANSI B16.5
9. Inspect and test: API598; EN12266-1
