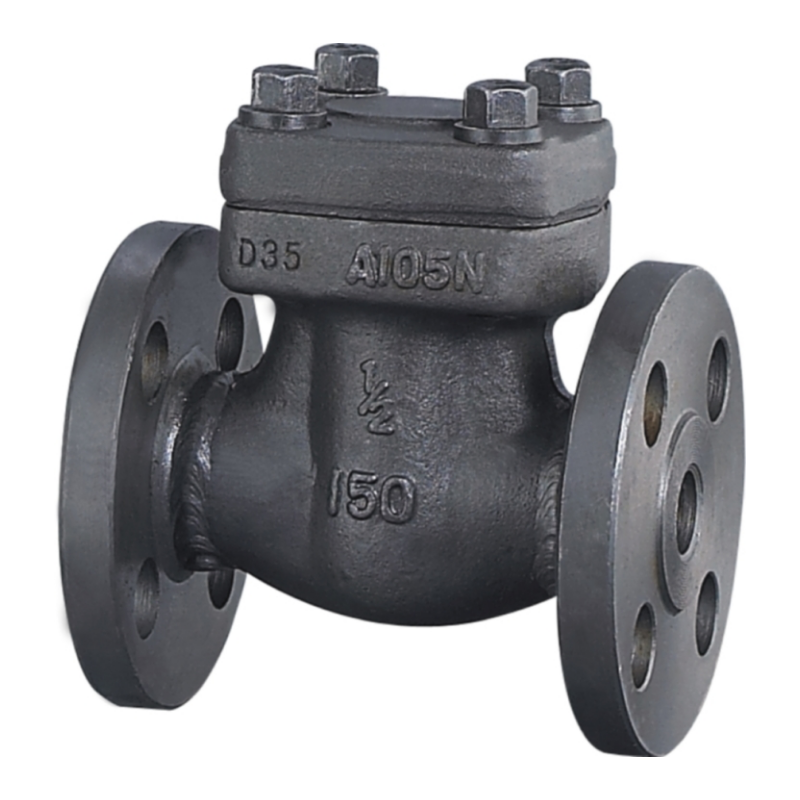

FLANGE SWING CHECK VALVE

Pressure: 150~1500LB, PN16~250

Size: 1/2″-2″

End: RF, RJ, FM, etc.

Material: A105/LF2/F11/F22/F304/F304L/F316/F316L/F51/F53, etc.

Description

1. Reduced or Full Port

2. Construction: B.C&W.C

3. Gasket: Stainless Steel+Graphite, etc.

4. Renewable Seat

5. Material for trim is depend on client requirement&operating condition

6. Design&Manufacture: API602; DIN; BS5352; etc.

7. Flange Dimension: ANSI B16.5; EN1092-1

8. Face to Face:ANSI B16.10; EN558-1

9. Inspect and Test: API598; EN12266-1
