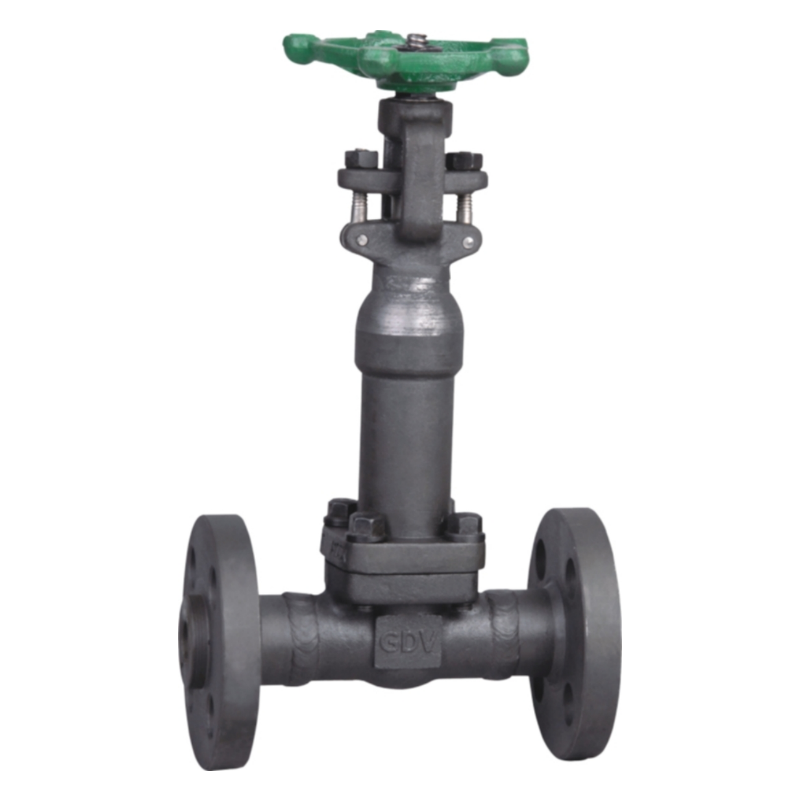

FLANGE BELLOWS VALVE

Pressure: 150LB~1500LB, PN16~PN160

Size: 1/2″-2″

End: RF

Material: A105/LF2/F5/F11/F22/F304/F304L/F316/F316L, etc.

Description

1. Reduced or Full Port

2. Construction: B.B&W.B

3. Gasket: Stainless Steel+Graphite, etc.

4. GATE: Renewable Seat; GLOBE: Integral Seat

5. Material for trim is depend on client requirement&operating condition

6. Design&Manufacture: API602; DIN; BS5352; etc.

7. Flange Dimension: ANSI B16.5; EN1092-1

8. Face to Face: ANSI B16.10; EN558-1

9. Inspect and Test: API598; EN12266-1
